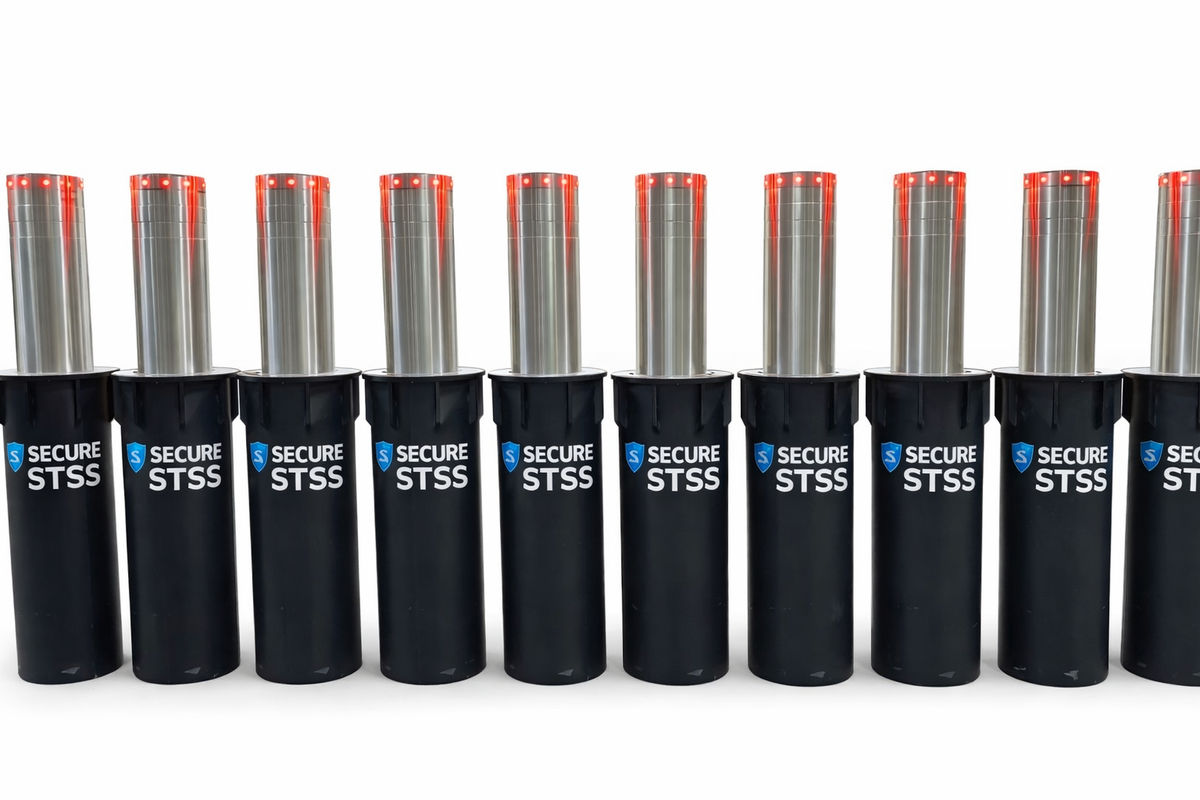

Automatic hydraulic bollard

Upgrade your security infrastructure with the Automatic Hydraulic Bollard a powerful, reliable, and high-performance solution designed for modern access control and perimeter protection.
Engineered with a robust 4mm thick steel cylinder, this bollard offers exceptional impact resistance, making it ideal for high-risk and high-security areas. Its advanced hydraulic drive system ensures smooth, fast, and durable operation even under continuous use.
Whether you need to protect sensitive locations or manage vehicle access efficiently, the delivers unmatched strength, safety, and automation.
 Key Highlights:
 Fast & Smooth Operation – Hydraulic system ensures quick rise and fall
High Impact Resistance – Built with thick FE370 steel for maximum protection
 Automatic Safety Features – Drops automatically during power failure
Emergency Release System – Manual control with personalized key
 Smart Signaling System – LED indicators & optional traffic lights for clear guidance All-Weather Performance – Resistant to rain, dust, and extreme temperatures
Easy Installation – Compact design with integrated hydraulic unit
 Ideal Applications
Perfect for high-security and controlled-access areas such as:
Military Bases
Embassies
Government Offices & Ministries
Banks & Financial Institutions
Hotels & Premium Car Parks
Commercial Complexes
Industrial Sites
Security Checkpoints
⚙️ Technical Specifications
Parameter
Details

Drive Mechanism
Electric Hydraulic Drive
Bollard Diameter
168 mm / 219 mm (Customizable)
Height Above Ground
600 mm (Customizable)
Material
Mild Steel / 304 Stainless Steel
Thickness
4 mm
Power Supply
220V, 50Hz
System Power
1.5W / 2.2W / 3.7W
Rising Time
≤ 3–5 seconds (Adjustable)
Falling Time
≤ 3 seconds (Adjustable)
MTBF
5,000,000 cycles
MCBF
1,500,000 cycles
Working Temperature
-35°C to 75°C
Operating Environment
-10°C to 65°C (Anti-rain, Anti-moisture
